China Electric Wheelchair Joystick Controller

Yuanlang is 8 inch Electric Wheelchair Motor Torque and controller factory,supplier, manufacturer and wholesaler. Basic parameters: No-load speed:3400rpm Output speed: 150rpm Efficiency (%): ≥85 Brake type : Electromagnetic brake Reduction Ratio: 23:1 Noise Grade (dB): ≤60
Availability:

Description

logo

NANJING YUAN LANG ELECTRONIC TECHNOLOGY DEVELOPMENT CO., LTD.

- — OEM&ODM — -


E-mail: info@njyuanlang.com       Web: www.njyuanlang.com

The China Electric Wheelchair Joystick Controller  is the core control device used to control the starting, running, advancing and retreating, speed, stopping and other electronic devices of the electric vehicle/bike motor. It is like the brain of the electric vehicle/bike and an important component on the electric vehicle/bike. Electric vehicles mainly include electric bicycles, electric two-wheeled motorcycles, electric tricycles, electric three-wheeled motorcycles, electric four-wheeled vehicles, battery cars, etc. The electric vehicle controllers also have different performances and characteristics because of different vehicle models.Yuanlang’s main products of electric bike brushless motor controller,working voltage ranges from 24v to 84v,power ranges from 250w to 5000w,meet most of the needs of the electric vehicle controller market.The best-selling brushless 24v 250w 6tubes electric scooter controller and 48v 3000w 24tubes electric rickshaw controller will surely be your first choice.


PRODUCT DESCRIPTION

groove-01


YLM-8

Core Data :

Voltage 24V dc
Power 250W
Structure Gear Drive
No-load speed 3400 rpm
Output speed 150rpm
Start current ≤1.8A max
No-load current ≤1.1A
Efficiency (%) ≥85
Tyre type 8 inch solid tire
Weight(KG/piece) 4.26 (including the wheels)
Operating temperature —30C°—80C°
Brake type Electromagnetic brake
Brake level 3N.m 24Vdc
Reduction Ratio 23:1
Noise Grade (dB) ≤60
Torque 0-30 N.M
Insulation Class F
Insulation voltage 0 - 550Vac/lmA/lsec


Further Specifications :

Brake type Electromagnetic brake
Brake level 3N.m 24Vdc
Reduction Ratio 23:1
Noise Grade (dB) ≤60
Torque 0-30 N.M
Insulation Class F
Insulation voltage 0-550Vac/1mA/1sec



Tests & Certifications :

IP65

CE/EN61000/EN60950/ISO90001


Dimension

groove-02

Motor Dimension Diagram


Hub-Dimension-Diagram


Product Picture

groove-03

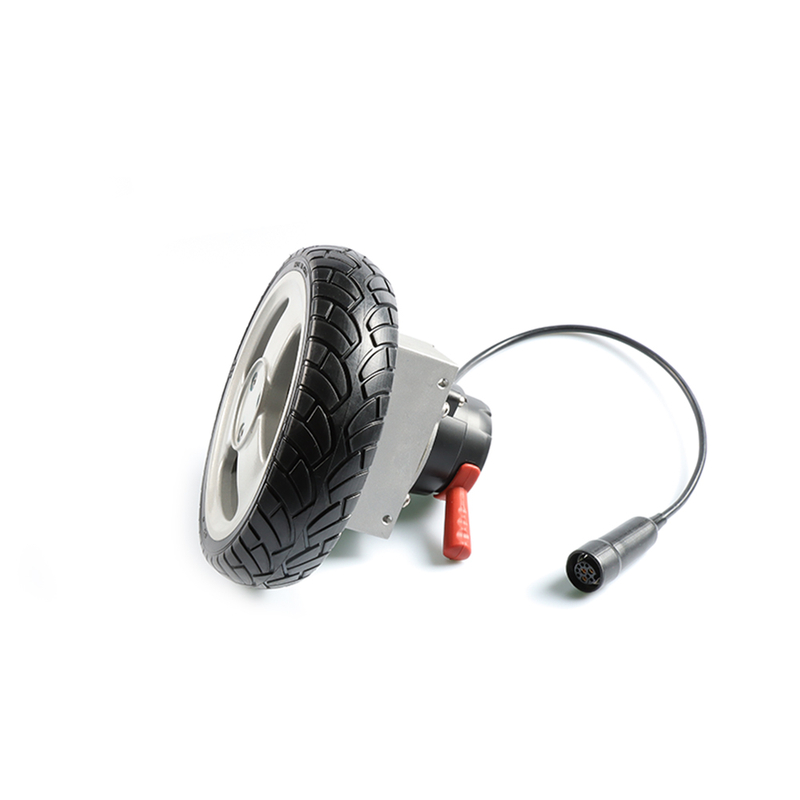

Product Picture

Motor-With-8-Inch-Solid-Tire-04
