Electric Wheelchair Motor Specs

Yuanlang is 8 inch Electric Wheelchair Motor Torque and controller factory,supplier, manufacturer and wholesaler.

Basic parameters:

No-load speed:3400rpm

Output speed: 150rpm

Efficiency (%): ≥85

Brake type : Electromagnetic brake

Reduction Ratio: 23:1

Noise Grade (dB): ≤60
Availability:

Description

logo

NANJING YUAN LANG ELECTRONIC TECHNOLOGY DEVELOPMENT CO., LTD.

- — OEM&ODM — -


E-mail: info@njyuanlang.com       Web: www.njyuanlang.com


PRODUCT DESCRIPTION

groove-01


YLM-8

Core Data :

Voltage 24V dc
Power 250W
Structure Gear Drive
No-load speed 3400 rpm
Output speed 150rpm
Start current ≤1.8A max
No-load current ≤1.1A
Efficiency (%) ≥85
Tyre type 8 inch solid tire
Weight(KG/piece) 4.26 (including the wheels)
Operating temperature —30C°—80C°
Brake type Electromagnetic brake
Brake level 3N.m 24Vdc
Reduction Ratio 23:1
Noise Grade (dB) ≤60
Torque 0-30 N.M
Insulation Class F
Insulation voltage 0 - 550Vac/lmA/lsec


Further Specifications :

Brake type Electromagnetic brake
Brake level 3N.m 24Vdc
Reduction Ratio 23:1
Noise Grade (dB) ≤60
Torque 0-30 N.M
Insulation Class F
Insulation voltage 0-550Vac/1mA/1sec



Tests & Certifications :

IP65

CE/EN61000/EN60950/ISO90001


Dimension

groove-02

Motor Dimension Diagram


Hub-Dimension-Diagram

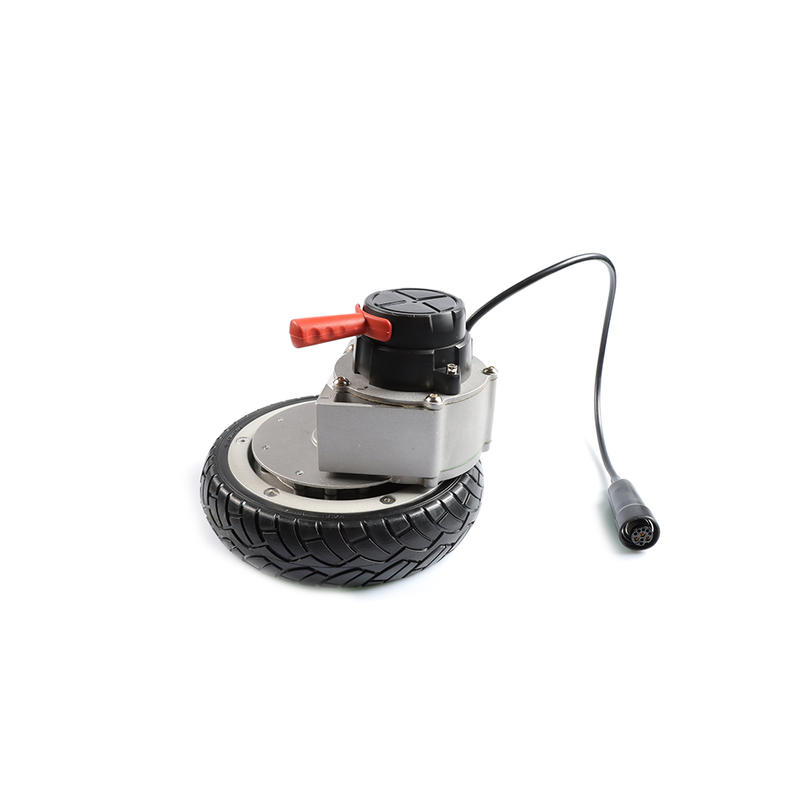

Product Picture

groove-03

Product Picture

Motor-With-8-Inch-Solid-Tire-04
