Wheelchar brushless motor is a typical mechatronics product, which is composed of motor body and driver. Because electric wheelchair motor is operated by automatic control, it will not add additional starting windings on the rotor like the synchronous motor started by heavy load under variable frequency speed regulation, and it will not produce oscillation and out of step when the load changes suddenly.
Wheelchar brushless motor is an upgrade product, its life performance is better than brush motor. However, the control circuit is more complex, and the requirements of aging screening are strict. Although the motor life is long, but the control circuit is prone to trouble. Therefore, the selection of brushless motor must go through a strict reliability test to ensure the quality. , but as the technology continues to upgrade a few steps, brushless motor technology has become quite mature. In the actual production process, because the brush-toothed dc motor is a high-speed motor, the teeth of the gear are small and easy to wear, but the strength is large and the climbing ability is strong. Brushless dc motor, in the use of the process to save two or three years of trouble to change the carbon brush. But in the control of the brushless motor process, high precision is required. And, brushless motor controller price is higher also. In contrast, the brushless dc motor is very easy to replace the carbon brush although it needs to replace the carbon brush. Besides, the control of the motor is relatively simple, the motor runs smoothly and has a high safety coefficient.

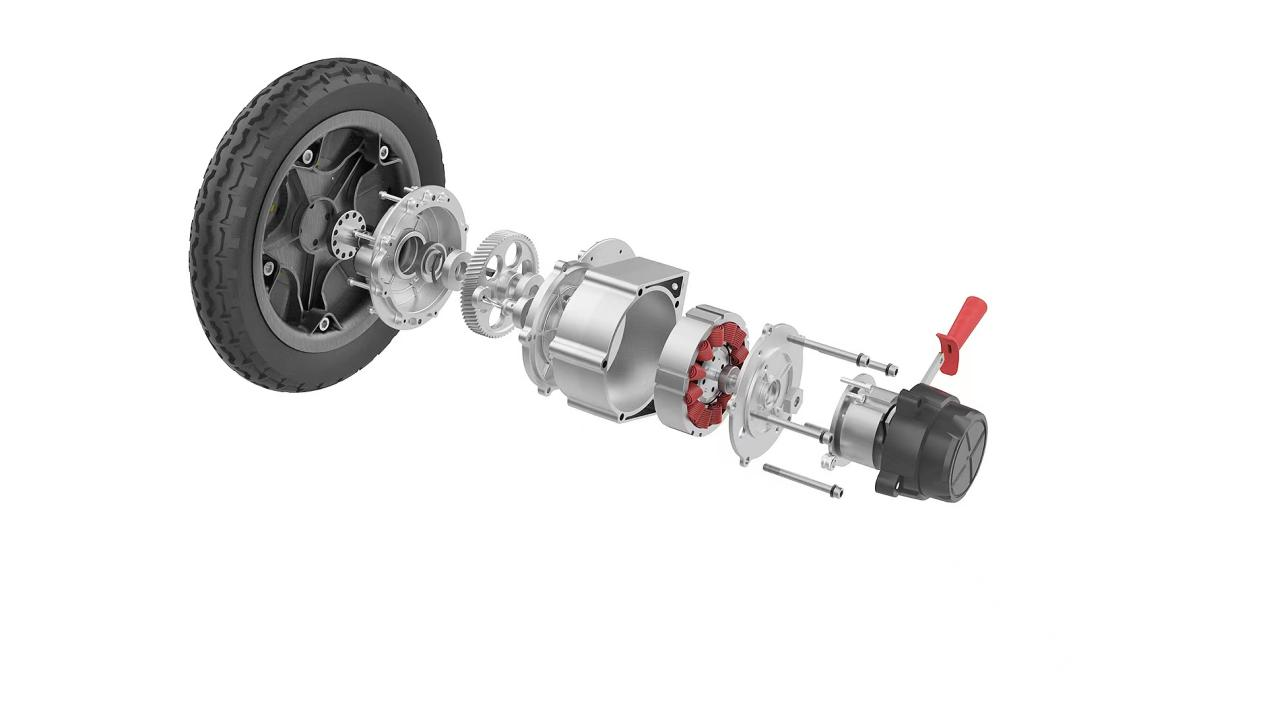

Based on current market demand,we,yuanlang, independently developed the cost-effective,high efficiency, long working lifts pan, free of maintenance,optional quick release DC brushless electric gear motor and 360 degree programmable joystick controller,this drive system of motor and controller can be used not only in electric folding wheelchairs, but also in electric logistics transmission vehicles and intelligent robots. In order to make our brushless wheelchair motors and controllers more widely used and be with better application experience, we are equipped our motor with 8-inch, 10-inch and 12-inch hub wheels, travel speed ranges from 6km/h to 10km/h (if you have special request for the speed,please contact us directly,as the speed is customized).
Tyre type | 8 inch | 10 inch | 12 inch |
Working date | 24V dc/250W | 24V dc/250W | 24V dc/250W |
Structure | Gear Drive | Gear Drive | Gear Drive |
No-load speed | 3400 rpm | 3100 rpm | 2200 rpm |
Output speed | 150 rpm | 130 rpm | 98 rpm |
Start current | ≤ 1.8A max | ≤ 1.8A max | ≤ 1.8A max |
No-load current | ≤ 1.1A | ≤ 1.1A | ≤ 1.1A |
Efficiency(%) | ≥ 85 | ≥ 85 | ≥ 85 |
Weight (including the wheels) | 4.26kg | 4.48kg | 4.88 kg |
Operating temperature | -30°C - 80°C | -30°C - 80°C | -30°C - 80°C |
