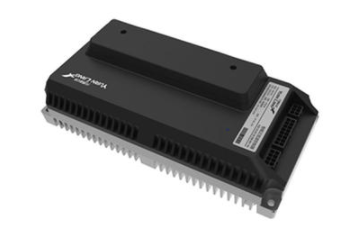

Wireless Integrated Controller For Electric Rickshaw

Upgraded from wires-type controller to wireless integrated controller.

Basic parameters:

Applicable: electric tricycle

Voltage range: 48V

Power range: 1200W

Maximum current: 60A

Waterproof rating: IP67
Availability:
  • electric scooter

Product Description


This new wireless integrated brushless controller offers the following advantages:

1. Fully upgraded in software and hardware, with higher operating efficiency, stronger output torque and more powerful climbing.

2. Better heat dissipation effect ,lower repair rate.

3. Novel appearance , improving the product grade.

4. Simpler and more convenient on installation, improving the production efficiency of the tricycle.

24-tube-1200W-Electric-Tricycle-Brushless-Controller-3

Higher-end chips

Master chip

Use German Infineon automotive-grade MCU. (main frequency >70M)


Patented structure

a. Optimize the structure design to make the large current passable

b. Improving the fixation, enhancing the stability and improving the fire performance to a greater extent

Integrated driver

MOS drive changed from a split device to an integrated drive device

a. Fewer components; b. Strong driving ability; c. Low failure rate


Waterproof performance

The waterproof performance reaches the IP67 level in the international IEC529 standard, that is: immersion-proof type (it will not enter the interior even if immersed in water under the specified conditions)


Anti-burning/Anti-tampering:

1.Cover material

a. Imported pure PC material with high hardness

b. The flame retardant level reaches the highest level of V0,that is extinguished from fire.

c. In the temperature range of -40 ℃ ~ 130 ℃, it is not melted, brittle or deformed.


2. Wiring

a. Two ends of the cable exit, the layout of the wiring is more reasonable (heat dissipation on both sides to improve the cooling effect)

b. Thick and thin lines are separated, and thin lines are routed separately.

c. Higher stability, reduce the repair rate

24-tube-1200W-Electric-Tricycle-Brushless-Controller-4

24-tube-1200W-Electric-Tricycle-Brushless-Controller-5
